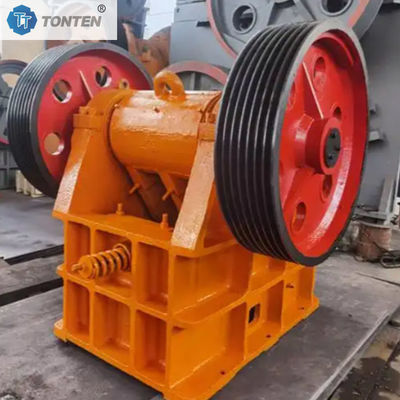

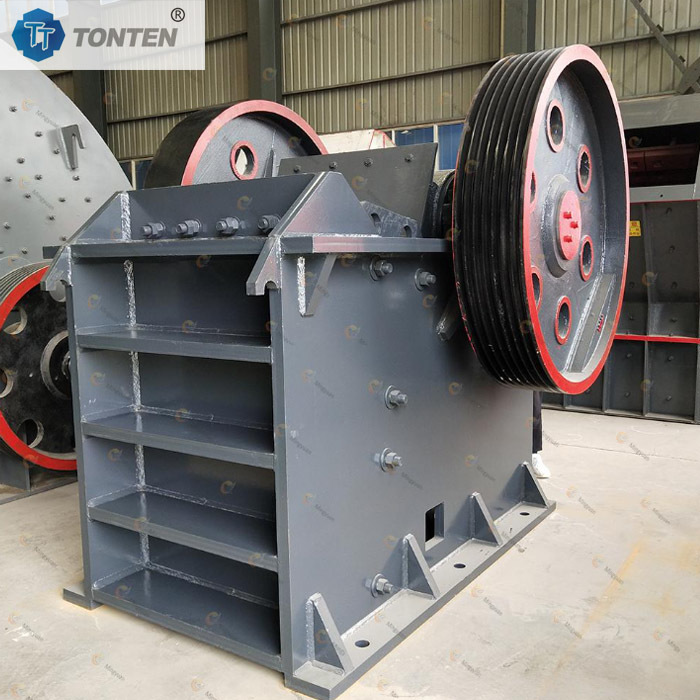

Primary Rock Stone Jaw Crusher Basalt Pebble Jaw Crusher Machine
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | TONTEN |
| Số mô hình: | TT-PE400x600 |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 1 bộ |
|---|---|
| Giá bán: | Có thể đàm phán |
| chi tiết đóng gói: | đóng gói xuất khẩu tiêu chuẩn, container hoặc theo yêu cầu |
| Thời gian giao hàng: | 5-7 ngày làm việc |
| Điều khoản thanh toán: | T/t |
| Khả năng cung cấp: | 30 bộ/tháng |
|
Thông tin chi tiết |
|||
| Trọng lượng máy (không bao gồm động cơ): | 6500-7000kg | Chế độ xoay hàm di động: | Đu quay / hợp chất đơn giản |
|---|---|---|---|
| Tốc độ trục lập dị: | Giống như tốc độ trục chính 275rpm | Góc khung tối đa: | thường ≤ 26 ° |
| Cấu trúc máy: | Khung hàn / khung thép đúc | Vật liệu áp dụng: | Đá cuội đá bazan đá |
| Ứng dụng sản phẩm: | Mối nghiền chính (nghiền thô) | Mục: | Máy nghiền hàm |
Mô tả sản phẩm
Primary Rock Stone Jaw Crusher Basalt Pebble Jaw Crusher Machine
Workflow (Role in the Production Line):
In a complete sand and gravel production line, the jaw crusher typically performs the primary crushing function:
Feed → Jaw crusher (primary crushing) → (intermediate silo) → Cone crusher/Impact crusher (secondary and tertiary crushing) → Vibrating screen (screening) → Acceptable material (finished product) → Unacceptable material returned for further crushing
Process Overview:
Large blasted rock (particle size may reach over 1 meter) is evenly fed into the jaw crusher by a vibrating feeder. The jaw crusher crushes it to a particle size of less than 250-300mm. The crushed material is then transported by a belt conveyor to the next stage of crushing (such as a cone crusher or impact crusher) for secondary and tertiary crushing. Finally, a vibrating screen is used to screen the finished sand and gravel aggregate into different specifications.
Jaw Crusher Features:
1. Simple and Reliable Structure: The classic design features few parts, low failure rate, and easy maintenance.
2. High Adaptability: The jaw crusher can handle materials of varying hardness, effectively crushing everything from soft limestone to hard granite.
3. Low Maintenance Cost: Wearing parts (such as the jaw plate) are easily replaced, and the high versatility results in a relatively low purchase cost.
4. Affordable Price: As a classic crushing equipment, the TONTEN jaw crusher offers a lower initial investment cost than other crusher types.
5. Large Feed Port: The jaw crusher is ideal for handling large materials and is an ideal choice for primary crushing (primary crushing).
Applicable Materials:
Ore: granite, basalt, river pebbles, iron ore, copper ore, gold ore, manganese ore, etc.
Rock: limestone, dolomite, diabase, etc.
Construction Waste: recycling and crushing of concrete, bricks, etc.
Other: slag, ceramic raw materials, etc.
Application Areas:
Mining (primary crushing)
Sand and gravel aggregate production lines (primary crushing)
Metallurgy, chemical industry, building materials, road construction, etc.
Construction waste recycling plants
Jaw crusher machine specification:
|
Model |
Feed port size (mm) |
Maximum feed size (mm) |
Discharge port adjustment range (mm) |
Machine capacity (T/H) |
Speed |
Power (KW) |
Weight |
| PE-250X400 | 250X400 | 210 | 20-60 | 5-20 | 300r/min | 15 | 2.8T |
| PE-400X600 | 400X600 | 360 | 40-100 | 16-50 | 260r/min | 30 | 7.5T |
| PE-500X750 | 500X750 | 450 | 50-100 | 40-100 | 275r/min | 55-75 | 12T |
| PE-600X900 | 600X900 | 500 | 65-160 | 50-150 | 250r/min | 75 | 18T |
| PE-750X1060 | 750X1060 | 650 | 80-140 | 110-300 | 250r/min | 90-110 | 29T |
| PE-900X1200 |
900X1200 |
780 | 90-165 | 220-350 | 200r/min | 110-132 | 36T |
| PE-1200X1500 | 1200X1500 | 1100 | 150-300 | 400-500 | 180r/min | 160-180 | 52T |
| PEX-250X750 | 250X750 | 210 | 25-60 | 13-50 | 300r/min | 30 | 5.5T |
| PEX-250X1000 | 250X1000 | 210 | 25-80 | 20-80 | 330r/min | 42 | 7.1T |
